MPSM Blower and Hotend Fan Shroud with Mount for Proximity Sensor by clearchris
by Thingiverse
Last crawled date: 4 years ago
This is a remix of https://www.thingiverse.com/thing:2722203 that uses the step file graciously provided. This shroud has been backported to work with the monoprice select mini v1 in addition to adding some features.
1) Ports this shroud to work with the MPSM v1. It should (untested by me) still work with the v2 if using the e3dv6 hotend.
2) It moves the nozzle far enough back where the nozzle shouldn't be affected by heat coming off the hotend.
3) Adds wire management loops on the top
4) Adds a location to mount a proximity sensor.
5) Tightens up the mounting ring on the top so the hotend has less likelyhood of rotating.
Notes
This is for the e3dv6 hotend . I'm currently using this shround with an adapter from US Water Rockets
https://www.thingiverse.com/thing:1848402
It should also work with the US Water Rockets designed carriage.
https://www.thingiverse.com/thing:2353376

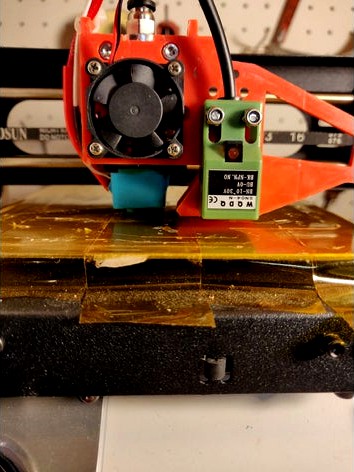

The sensor I am using (shown in picture) is:
SN04-N Inductive Proximity Sensor Switch DC 6-36V 300mA NPN NO 3-wire 4mm
Depending on the sensor that you use, you may need to use different mounting holes. If you use one similar to mine, that has a 4mm distance, print the 4 hole version and use the lower set of holes. If you purchase one that has a different form I have provided a second shround that has three pairs of holes that can get the sensor closer and further away.
To mount the sensor properly, print the 4mm spacer, home your printer, put the spacer under the sensor and screw the sensor down.
Special notes for MPSMv2
I think it should work with the stock mount and an e3dv6 hotend. I have not tested this. Feedback welcome.
1) Ports this shroud to work with the MPSM v1. It should (untested by me) still work with the v2 if using the e3dv6 hotend.
2) It moves the nozzle far enough back where the nozzle shouldn't be affected by heat coming off the hotend.
3) Adds wire management loops on the top
4) Adds a location to mount a proximity sensor.
5) Tightens up the mounting ring on the top so the hotend has less likelyhood of rotating.
Notes
This is for the e3dv6 hotend . I'm currently using this shround with an adapter from US Water Rockets
https://www.thingiverse.com/thing:1848402
It should also work with the US Water Rockets designed carriage.
https://www.thingiverse.com/thing:2353376
The sensor I am using (shown in picture) is:
SN04-N Inductive Proximity Sensor Switch DC 6-36V 300mA NPN NO 3-wire 4mm
Depending on the sensor that you use, you may need to use different mounting holes. If you use one similar to mine, that has a 4mm distance, print the 4 hole version and use the lower set of holes. If you purchase one that has a different form I have provided a second shround that has three pairs of holes that can get the sensor closer and further away.
To mount the sensor properly, print the 4mm spacer, home your printer, put the spacer under the sensor and screw the sensor down.
Special notes for MPSMv2
I think it should work with the stock mount and an e3dv6 hotend. I have not tested this. Feedback welcome.
