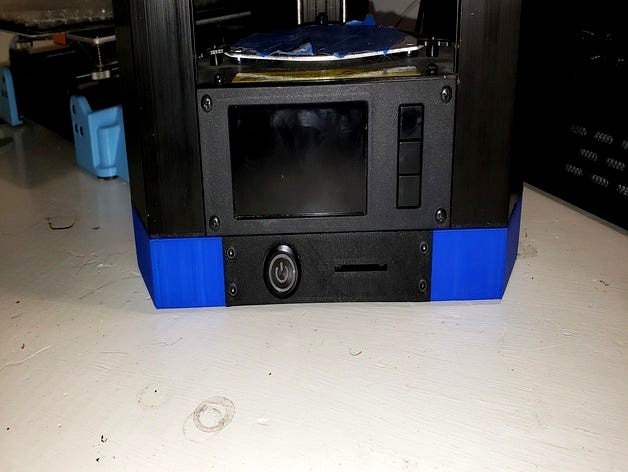

MPMD Base (Remix)

Last crawled date: 5 years, 2 months ago

Really liked the original design but wanted to make a few minor changes:
All plates:
Screw holes: Vertically centered & resized to allow the use of socket head cap screws (M3) that inset bolt flush with face of the plate.
Corner cutouts: Screws holding on the MPMD baseplate are actually 3mm from the outside edge of the printer, so covered the front 2.5mm of this gap.
Power plate:
Connectors: Had XT30 connectors laying around, so changed power plate to use XT30 connectorsFeet:
Screw Holes: Vertically centered all holes.
Corner cutouts: While ndrogers1987's picture of the printed feet shows a gap for the baseplate's screws, the STL doesn't have the gap there, added the gap so that foot and screwhead don't collide.
Plate mount: Resized cutout where plates mount so plates will more reliably mount flush with front of feet.SD Clamps:
No changes.
The hardware list remains basically the same:
24 - M3 X 12mm screws
2 - M3 x 16mm screws (SD clamp)
14 - M3 nuts
2 - Female XT30 connectors
2 - Male XT30 connectors
3 - Silicone pads
1 - Switch
1 - Micro SD to SD adapter cable
