MPCNC 15mm GT2 update
by Thingiverse
Last crawled date: 5 years, 7 months ago
STILL IN WORK

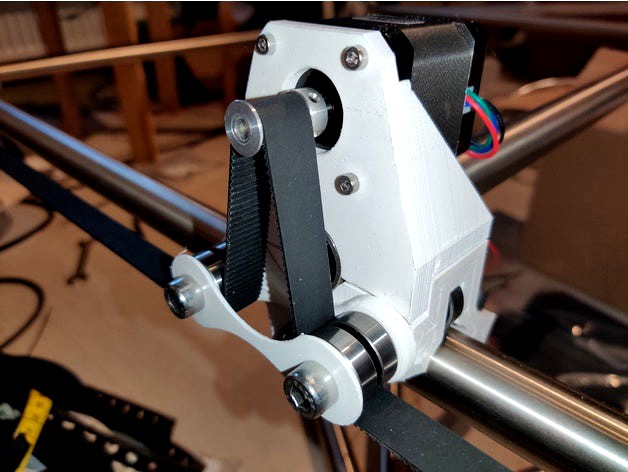

Part to update from a 6mm GT2 Belt to a 15mm GT2 belt.
Roller Spacer to gain space for the 15mm pulley on the nema17
Wheelbearing spacer inbetween the 2 bearings
Rollerplate like the original
UPPER_BeltTensioner is inserter at the end in the tubes (for an ID of 21mm; eg. 25x2)
no supports needed i used 75% infill
Bolts for the bearings needs now to be M8x80 instead of M8x65.
LOWER_BeltTensioner is not tested yet, it should be fitting.
