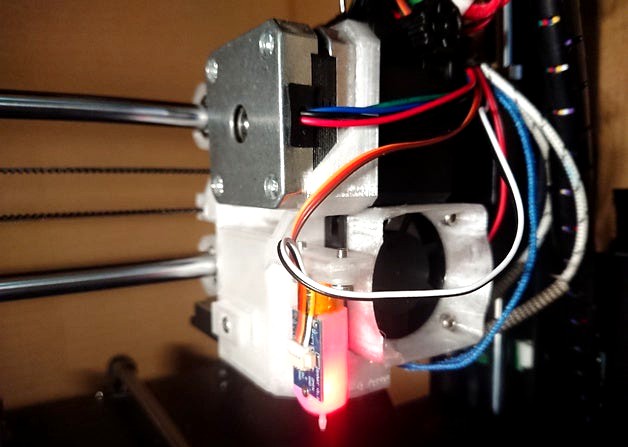

"MONOBLOCK" ANYUCBIC I3 MEGA-S Direct Extruder MOD add BLTouch

Last crawled date: 6 years, 2 months ago

This is the remix of https://www.thingiverse.com/thing:3954252.
Parts List
1 x BLTouch or clone(https://ja.aliexpress.com/item/32832887426.html)
2 x M3 x 8mm screw(https://amzn.to/2P78JRW)
I use this with BLTouch Firmware.(https://github.com/MNieddu91/Marlin-AI3M-BLTouch)
X_PROBE_OFFSET_FROM_EXTRUDER -28
Y_PROBE_OFFSET_FROM_EXTRUDER -30
For MAINBODY-_ANYCUBIC_Titan_Like-WithCoolerDuctMount_add_BLTouch
X_PROBE_OFFSET_FROM_EXTRUDER -28
Y_PROBE_OFFSET_FROM_EXTRUDER -40
Update
Dec/27/2019 Add MAINBODY-_ANYCUBIC_Titan_Like-WithCoolerDuctMount_add_BLTouch
Jan/01/2020 Add sub_board_holder. This uses 1 x M3 30mm screw.
