MODULAR DESK ORGANISER - NO SUPPORTS EVER - OVER 27 MODULES by NerdsVille1919
by Thingiverse
Last crawled date: 4 years, 8 months ago
This project is intended for the Student Virtual Prototyping Design Challenge and
was modeled using Autodesk Fusion 360, where I designed a modular desk organizer that
can expand in all three axis.

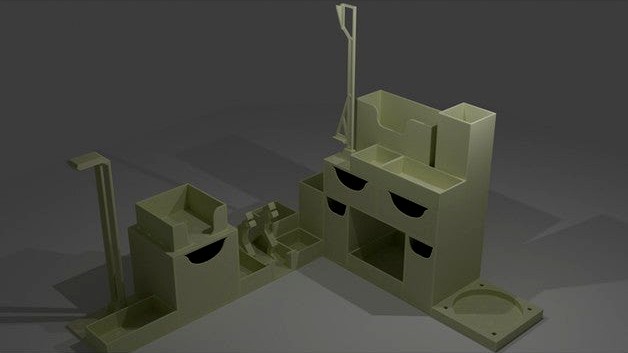

This design can help classmates with virtual learning in many ways. Not only is the phone holder excellent for video calls and for display, but the mask holder, cup holder, headphone holder, and tape dispenser help organize things needed for online and in person school. In addition, the large array of pen holders, dishes, and drawers are excellent for organizing anything they would need.
I have over 27 different modules, and have compiled a list at the bottom of the summary. The units I use in the pictures and file names are representations of 50mm increments, so 1 is 50mm, 2 is 100mm and so on. I have designed every module to be printable without supports, making the print faster and cheaper. The bottom of each module has holes, and the top of some has a protrusion. The top of one module and the bottom of another will fit into each other, and to connect them, I made some connector pieces that are just the protrusion.
One issue I came up against was the tolerances needed to let the connector module and other modules snap together well, and for the drawers to slide in and out of each other.
If I could redesign any part of any module, I would work on the tolerances of the connectors and drawers.
3D printing would help strengthen the design by making it solid (just kidding ;D). 3D printing would help strengthen the design by helping me find flaws and improving the design.
ALL MODULES:
1 x 1 x 1 Open Top Module
1 x 1 x 2 Open Top Module
1 x 2 x 2 Open Top Module
2 x 1 x 1 Open Top Module
2 x 1 x 2 Open Top Module
2 x 2 x 2 Open Top Module
1 x 1 x 0.5 Dish Module
1 x 2 x 0.5 Dish Module
2 x 2 x 0.5 Dish Module
Mask Holder Module
Headphone Holder Module
Tape Dispenser Module
Phone Stand Module
Sticky Note Module
Filler Module
Cup Holder Module
Module Base
1 x 1 Connector Module
1 x 2 Connector Module
2 x 2 with 1 x 1 Missing Connector Module
2 x 2 Connector Module
1 x 1 x 1 Drawer Module
1 x 1 x 2 Drawer Module
1 x 2 x 1 Drawer Module
1 x 2 x 2 Drawer Module
2 x 1 x 1 Drawer Module
2 x 1 x 2 Drawer Module
2 x 2 x 1 Drawer Module
2 x 2 x 2 Drawer Module
