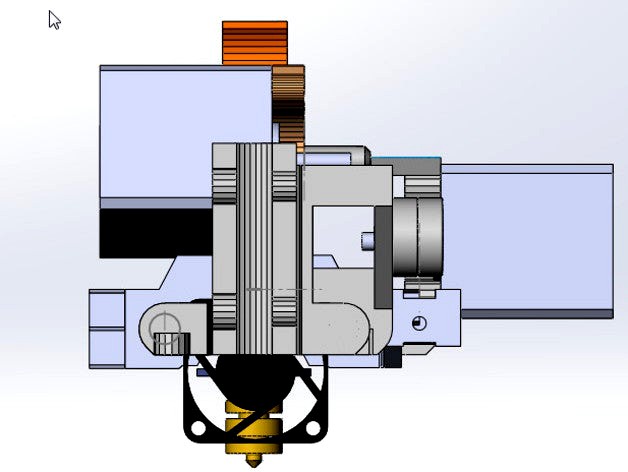

This is a modified X-end http://www.thingiverse.com/thing:21122 set for using RichRaps Quick-Fit X Carriage. http://www.thingiverse.com/thing:19590
Motor was moved out 7.5mm to align belts.
Idler was moved out also to align double bearings.
This set uses std 8mm threaded shafts, 10mm Z shafts LM10UU, 8mm X Shafts.
Replaced files with fixed STL's.
Motor was moved out 7.5mm to align belts.
Idler was moved out also to align double bearings.
This set uses std 8mm threaded shafts, 10mm Z shafts LM10UU, 8mm X Shafts.
Replaced files with fixed STL's.
