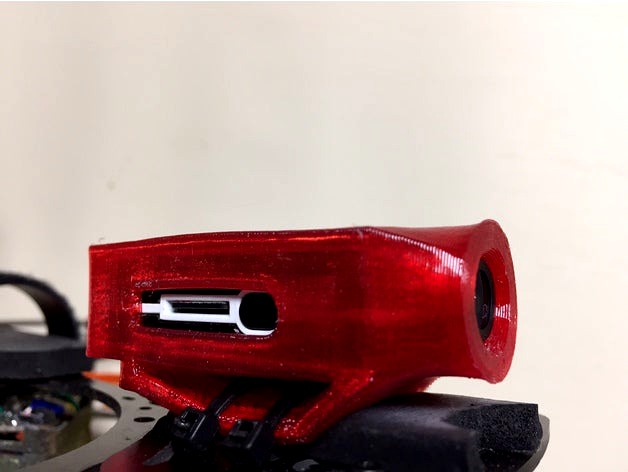

Mobius Mini Camera mount 10-degree tilt by pathfinderzero
by Thingiverse
Last crawled date: 4 years, 7 months ago
This is a remix of this great Mobius Mini camera mount by UltiBots https://www.thingiverse.com/thing:2451154.
Changes:
Reduced the tilt to 10 degrees.
Added cutout for SD Card slot so that you can remove the SD card.
Cut out a small section of bottom mount to make it easier to get a grip and remove Mobius Mini from the mount.
I used SainSmart TPU on a CR-10 with an upgraded metal extruder drive feed for flexible filament. Nozzle temp 220C and bed temp 70C at 15mm/s 1st layer and 30mm/s rest. No fan. I used 10mm retraction at 100mm/s and also turned on coasting to avoid blobs and stringing.
Changes:
Reduced the tilt to 10 degrees.
Added cutout for SD Card slot so that you can remove the SD card.
Cut out a small section of bottom mount to make it easier to get a grip and remove Mobius Mini from the mount.
I used SainSmart TPU on a CR-10 with an upgraded metal extruder drive feed for flexible filament. Nozzle temp 220C and bed temp 70C at 15mm/s 1st layer and 30mm/s rest. No fan. I used 10mm retraction at 100mm/s and also turned on coasting to avoid blobs and stringing.
