MKS-Mosfet Case

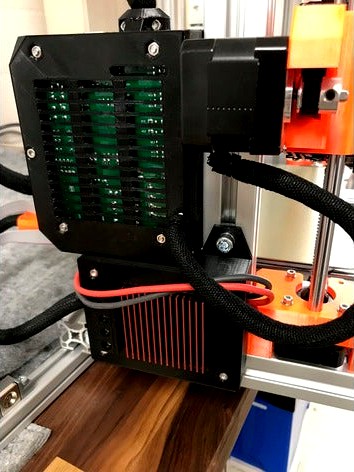

This a first try for a case for my MKS-MOSFET, which I installed on my Haribo mod.
I tried to do a very simple design, which will work, but isn't the most comfortable to install. Because of the design, the four screws, which holds the top on the baseplate, are also used for mount the MKS-Mosfet on the baseplate.
This version of the design will use M3 brass inserts, e.g. https://bit.ly/2M1i7qf
You will need this for a proper installation:
a MKS-MOSFET with dimensions like 8,8 x 6,7 x 3,3 cm
4x M3 brass inserts
4x M3x25 countersink screws
If there is a need, I will redesign the case for a simple use with hex nuts
