MKR24 macro pad (Work in progress) by Tiranth
by Thingiverse
Last crawled date: 4 years, 11 months ago

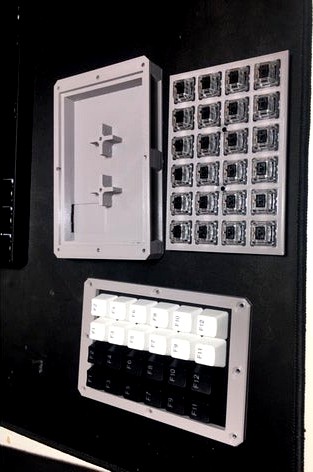

24-key atmega32u4 controlled keyboard for mechanical switches.
Theres room for a microcontroller (max. 35mmx21mm) with flat bottom and micro usb port.
Its a tight fit, but a firm one.
Screw holes are 3mm in diameter. Parts are prepared to take M3 nuts, but you might get away with screwing just into the part.
Screws for the mounting plate dont seem to be needed, if printed accurately.
Not putting them in had no effect to fit and sound in my case.
This model is a work in progress.
Feedback and suggestions are welcome.
3.11.20 : Edited Case and Mounting plate
Theres room for a microcontroller (max. 35mmx21mm) with flat bottom and micro usb port.
Its a tight fit, but a firm one.
Screw holes are 3mm in diameter. Parts are prepared to take M3 nuts, but you might get away with screwing just into the part.
Screws for the mounting plate dont seem to be needed, if printed accurately.
Not putting them in had no effect to fit and sound in my case.
This model is a work in progress.
Feedback and suggestions are welcome.
3.11.20 : Edited Case and Mounting plate
