MK5 / MK6 Thermal Barrier Heatsoak / Cooling Mod by nauglanch
by Thingiverse
Last crawled date: 4 years ago
[Edit] This failed on me. The holes are too big and the PTFE expanded into the holes under filament pressure. Now I can't extract the filament or the tube. I'm still confident it would still work but with lots of much smaller holes. Next I may just stack TO-5 heatsinks on the tube. A buck each on ePray. [/EDIT]

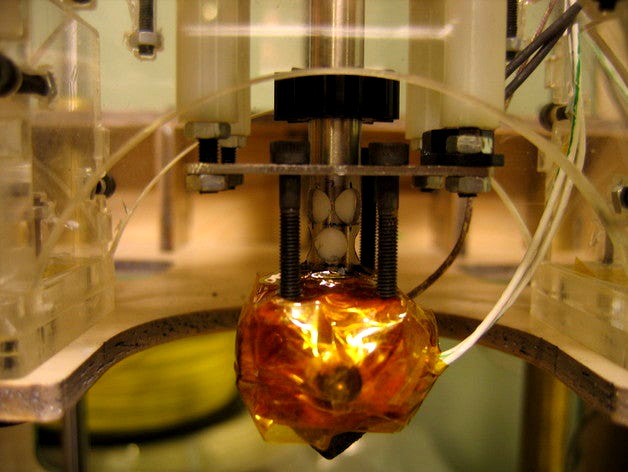

This thing is a modified MK5 / MK6 thermal barrier. The hole arrangement significantly reduces heat conduction / heat soak up the thermal barrier tube.
This arrangement of staggered holes retains structural integrity that is otherwise lost with the horizontal cut-slit method.
This solves or greatly reduces the problem of heat soak during long prints causing filament to soften and / or jam/expand in the PTFE.
The thermal barrier dxf file is Makerbot's not mine.
