Miter Gauge for Bosch RA1181 Router Table by DamianB2
by Thingiverse
Last crawled date: 4 years, 5 months ago

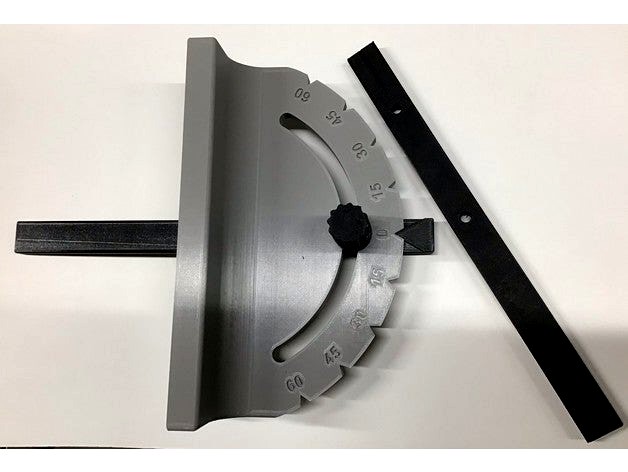

The Bosch RA1181 router table does not come with a miter gauge so this solves that problem. This design includes 2 sliders: one with a detent for 15 degree increments, and one with out a detent to allow for any angle to be set.
The main body and slide is attached with a 1" to 1.25" 1/4" round head bolt and a nylon insert locknut inserted into the slot on the back of the main body.
The slide to knob is attached using a 1" to 1.125" 1/4" hex head bolt and a nut inserted into the knob's slot.
The main body and knob are generic so a miter gauge for many saws and router tables could be made by creating a resized slide to fit the tools slot.
The main body and slide is attached with a 1" to 1.25" 1/4" round head bolt and a nylon insert locknut inserted into the slot on the back of the main body.
The slide to knob is attached using a 1" to 1.125" 1/4" hex head bolt and a nut inserted into the knob's slot.
The main body and knob are generic so a miter gauge for many saws and router tables could be made by creating a resized slide to fit the tools slot.
