Minimal case for ESP32 + ILI9341 by jeffthiele
by Thingiverse
Last crawled date: 4 years, 11 months ago

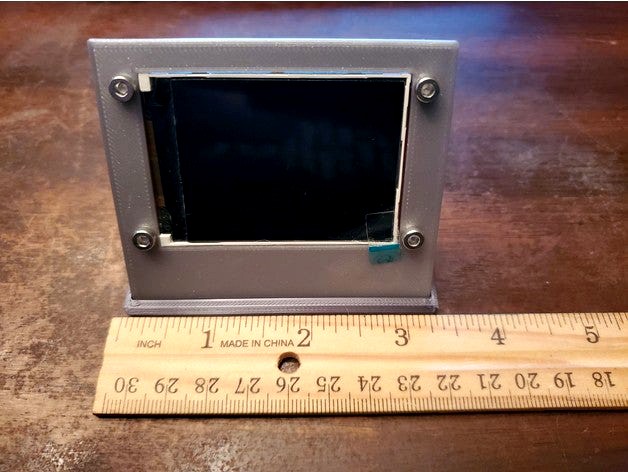

A minimal case for an ESP32 WROVER-type board and an ILI9341 display module with SD slot.
The two modules can be connected with female-female Dupont cables. The screen module is screwed to the screen panel with four M3x6 screws and appropriate nuts, while the arm holds the microcontroller in place with one M3x8 screw and appropriate nut. The screen panel and base are not screwed together; the screen panel fits into a slot in the base. This allows easy access to the microcontroller's IO pins.
Supports are required for the base only, because of the recessed hole on the bottom for the nut.
If you wish to modify, see the compcase.scad file. All three components (screen, arm, base) are in the one file as modules, so that you can comment out two of the module calls at the bottom (and translate() call, as appropriate) to isolate a particular component for export to a .stl file.
