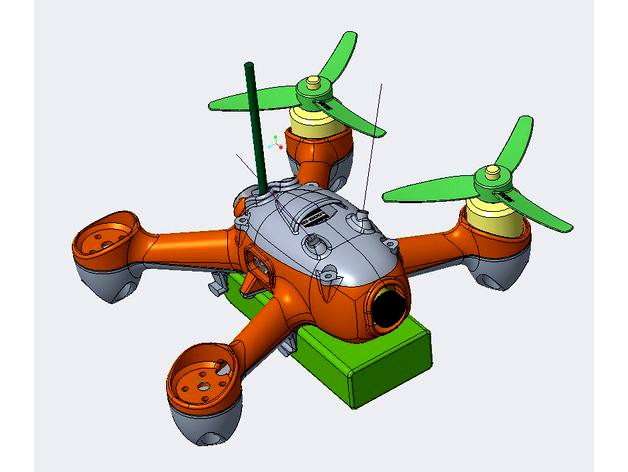

Mini JWL by Onlyforfun46
by Thingiverse
Last crawled date: 4 years, 8 months ago
Ciao y'all,
The main purpose of this Quad is flying on FPV in my backyard (tiny and Narrow!).
The idea is to contain as much as possible all the electronic inside of the frame for better protection and have a pleasant aesthetic.
VERSION V0:
-->(everything fits in but tightly !) need some soldering / assembly skills :-)
-->All thicknesses can be reduced to further contain the weght.
Mini Quadcopter 130mm Diag motor to motor
-Motors: TMotor F20 V2
-ESC&PDB: Beerotor 4in1 15A with BLHELY-S DShot600
-FC: Beerotor MiniF4 with Betaflight
-VTX: Quanum Elite QE66 600mW 5.8Ghz
-CAM: Runcam Micro Swift
-ANTENNA: Cloverleaf -Custom Made-
-BATTERY: 3S 750mAh
I'll keep you posted with future releases.
Have fun !
Ciao
