mini drak ESC LID by clevis41
by Thingiverse
Last crawled date: 4 years, 1 month ago
(NOTE THIS IS DRAWN IN STANDARD INCH SIZE FORMAT )

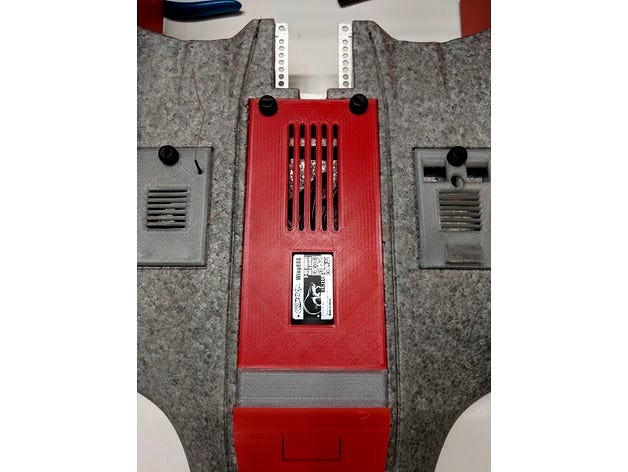

A LID TO MOUNT YOUR ESC FOR MUCH BETTER COOLING. U MAY OE MAY NOT WANT TO ADD A HEATSINK ON THE TOP OF THE ESC WHICH WILL THEN PROTRUDE ABOVE THE LID FOR THE MAX COOLING OF YOUR ESC. YOU WILL NEED THE MOUNTING BRACE I MADE AS WELL TO SECURE FRONT END OF THE LID. MOUNTING BLOCK IS FIXED IN WITH GLUE. ESC LID THEN CAN SLIDE UNDER ONE SIDE AND LOCK ON THE OTHER WITH THUMB SCREWS. BATTERY LID CAN BE GLUED OR SCREWED TO MOUNTING BLOCK. ( YOU NEED TAP THE HOLES WITH A 1/4-20 TAP. https://www.thingiverse.com/thing:2637436https://www.thingiverse.com/thing:2642751https://www.thingiverse.com/thing:2650151
NOTE I WILL PROB JUST USE SHOE GOOP TO FASTEN ESC TO THE PLATE. YOU CAN USE IMAGINATION AND MOUNT IT ANYWAY THAT SUITES YOUR NEEDS.
