Micro 64 Nano Light by Rygar1432
by Thingiverse
Last crawled date: 4 years, 7 months ago
Edit: 7/1/18 Now the frame is even lighter. New files are the "light light version" Make sure you download the proper frame and guards (light light frame and light light prop guards go together). RunCam version is now 27g and the FX805 is now 25g. 2grames lighter!!
After several test flights I found that the frame and guard are best printed with NylonX. The Micro 64 Alloy 910 nylon prop guard would obtain way to much moisture making the camera a little loose in the mount after some time. In my opinion MatterHackers NylonX is the absolute best quad frame material to use. It's stronger than carbon fiber standard frames.

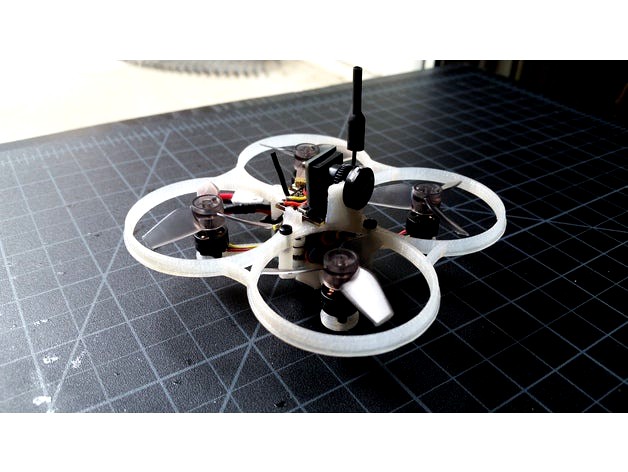

My Whoop replacement, this micro flies like a dream. Completely 3D printed all 910 Nylon (NylonX) filament except for the battery holder which was printed with TPU. All plastic screws minus the metal motor screws. 29g with the runCam, 3min flight time and 27g with the FX805 combo, 3.5min flight time.
Parts:
Racewhoop FC
RacerStar 6A 4in1 esc (New light light version uses the Furious FPV Fishpepper 5A 4-in-1 Brushless ESC)
BetaFlight FPV 0703 15000Kv motors
FS-RX2A Pro Receiver (new light light version uses the frsky XM receiver)
RunCam Nano & TX25 VTX or FX805 combo camera
Rakonheli 40mm 3 Blade Transparent Propeller
BETAFPV 260mAh HV 1S Lipo Batteries 30C 4.35V with JST-PH 2.0 Powerwhoop Connector
Edit: Added BeeCore OMNIBUS F3 Frame for RCGroups.com member Mukenukem.
Edit: Added BeeCore OMNIBUS F3 Frame 1.5 Final cut
Edit: Added battery holder double
