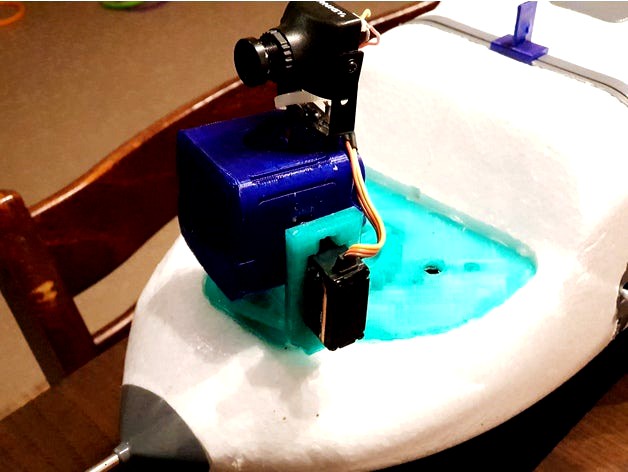

MFD Nimbus Session mount, 2-axis rotational with gear by drnut
by Thingiverse
Last crawled date: 4 years, 7 months ago
I created this to get two things:
a mount for my Session to be able to rotate it in yaw+pitch while giving it a gear for yaw to get more rotational freedom
a bottom plate to mount it all on (instead of the provided wooden plate) to be able to move at least one of the servos inside the nose
Two versions of the Gopro mount are available:
the normal version
the "cold" version plus a lid for it. My Session tends to die on me after a few minutes in cold weather around 0°C/32°F. If you put it in this case after warming it up in your pocket for a bit it works like a charm.
You need two servos (I used the ones from the Nimbuses tail from a crashed predecessor) and a short M3 screw plus nut for the pitch axis and a longer one (also M3) for the gear, also with nut. Feel free to ask any questions, the thing works fine for me ;)
