Metric Screw Gauge (also Nuts and Washers) by ubergeeknz
by Thingiverse
Last crawled date: 4 years, 5 months ago
Based on the same concept as the Metric Screw Hex Nut Jig and other screw jig designs, but drawn from scratch in Fusion 360.

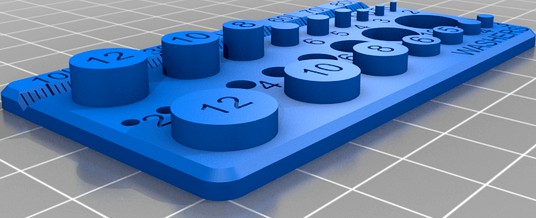

This handy tool measures 82mm x 44.5mm and allows you to quickly sort Metric screws or bolts, nuts of any type (eg. hex nut, T-nut, embedded nut, captive nut) and washers in the following sizes (M2 and M2.5 screws and nuts only)
M2, M2.5, M3, M4, M5, M6, M8, M10, M12
Allows a 0.2mm tolerance on hole sizes and for some amount of "elephant's foot". If the holes print too small try adjusting "Horizontal Expansion" or similar in your slicer.
Text and measurements are debossed, so you could use a touch of paint to make them really stand out.
This handy tool measures 82mm x 44.5mm and allows you to quickly sort Metric screws or bolts, nuts of any type (eg. hex nut, T-nut, embedded nut, captive nut) and washers in the following sizes (M2 and M2.5 screws and nuts only)
M2, M2.5, M3, M4, M5, M6, M8, M10, M12
Allows a 0.2mm tolerance on hole sizes and for some amount of "elephant's foot". If the holes print too small try adjusting "Horizontal Expansion" or similar in your slicer.
Text and measurements are debossed, so you could use a touch of paint to make them really stand out.
