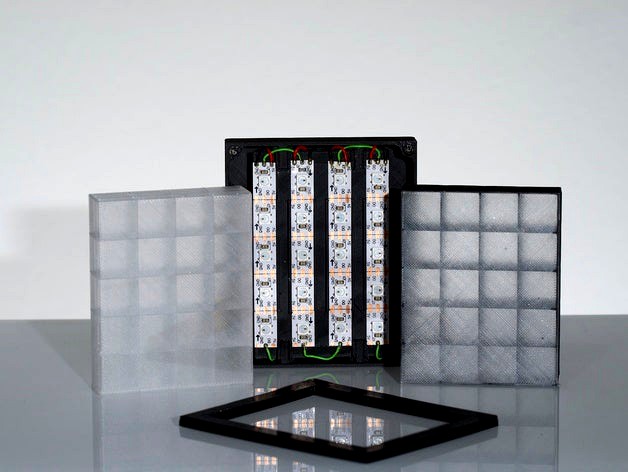

metaPixel is a simple, modular WS2812 LED-strip base LED panel. Each module contains 20 LEDs in a 4x5 grid behind a printed diffusor.
The modules are connected by D-SUB high power connectors. Magnets on the sides of the modules add stability to the connection.
I have used black ABS for the boxes and clear colorfabb XT for the diffusor foil.
Autodesk Fusion archives and STEP files are included in the zip archive.
controlled by a Teensy 3.1 using the FastLED library.
Videos: In action, Parts
Additional sources (Software, Schematics etc.) on github
