Mendel90 square nozzle fanduct by wingmaster
by Thingiverse
Last crawled date: 4 years, 7 months ago
This is a remix of the original Mendel90 x carriage fan.

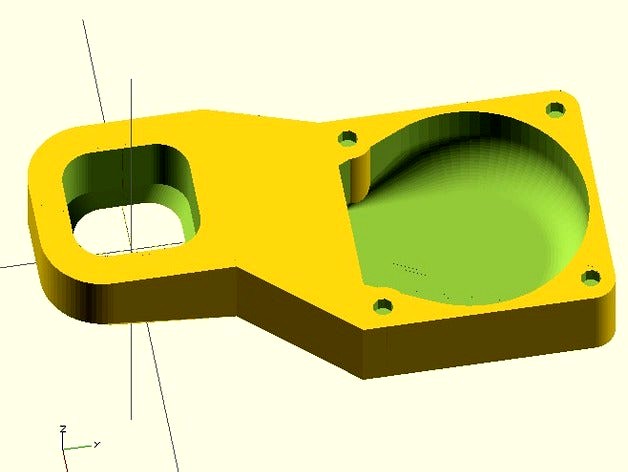

It uses a square instead of a round nozzle hole for the hotend. This makes it less likely that the hotend will melt the fanduct, because the hotend's corners are further away from the plastic.
I also added some extra supports in the duct itself for better bridging the long distance in the duct. See last picture.
I have not printed this version, but do not expect any problems.
But I did print another variant of this fanduct, that also included an e3d fanduct, I will publish that design later.
Please let me and others know if you printed it sucessfully !
