This is the three parts I modified to achive a 130% version of the Amazing Mega Anti-Tangle Spool holder from graham01.
With this version you can hold 2 and 3 kilos spools.
All the other parts are the same but only printed in 130% size.
As extra parts you will need 8 ball bearings, 8 screws diam 4mm and arround 20mm long, 24 bolts and 8 rings for this size of screws. For the bolt, the largeur size must be 7mm (to fit with the ball bearing center hole)

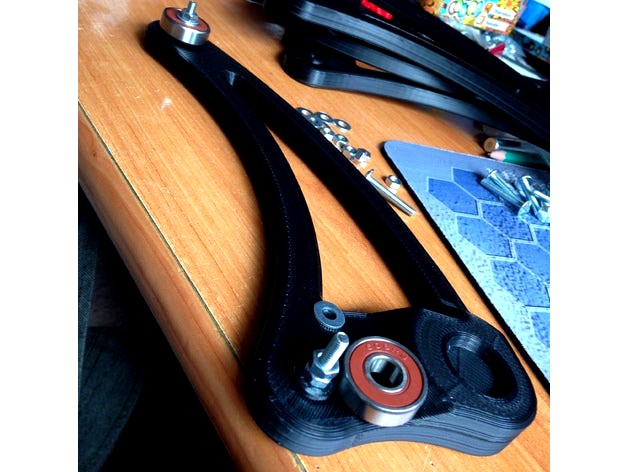

As you can see on picture, you juste have to place the screw into the hole, then screw 2 bolts, put the ball bearing on it then put the ring and finish with the last screw. This will maintain the ball bearing in place.
Once again, tahnks to graham01 for his initial work.
