Mechanical Keyboard - SiCK-68+Encoder+Oled Display
by Thingiverse
Last crawled date: 5 years, 10 months ago
The keyboard is based around SICK-68 Layout. I want to give a massive thank-you to FedorSosnin for providing the STL files for the SICK-68 keyboard.
Link : https://www.thingiverse.com/thing:3478494

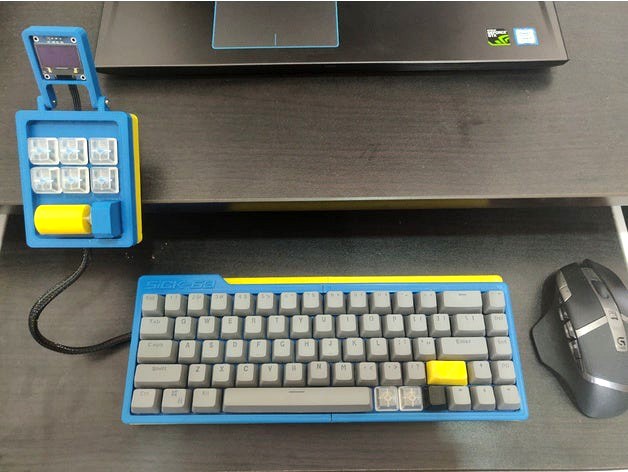

To his design i have added a separate design to hold:
An Encoder (KY-040) - Volume Control
OLED 0.96 inch 64x128 - Displays : Current Layer , Status of Lock Keys (CAPS)
Six cherry mx blue keys.
Keyboard Controller Board:
Teensy 2.0+ board .(The board is housed in the keyboard.)
Firmware:
Custom QMK based firmware.(Instead of the EasyAVR)
QMK Docs: https://beta.docs.qmk.fm/
Desk Mount:
4 X 13mm Diameter magnets
Oled Mount:
2 X M3 screw are used to mount it to the top part.
