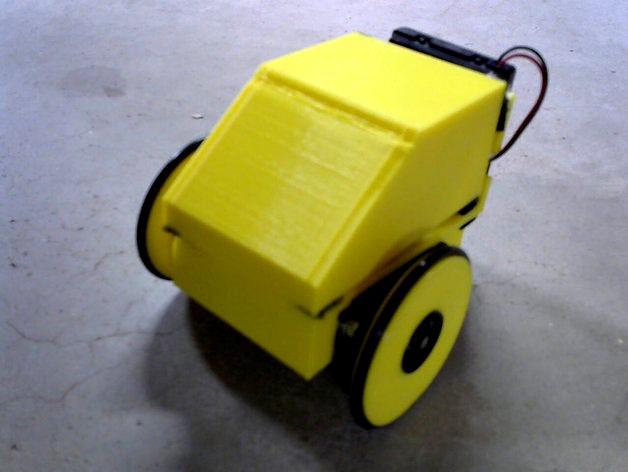

This is a small remote-controlled robot made using a Teensy 2.0. (Arduino) It uses two standard size continuous rotation servo motors for differential drive. There is a small nub that gets glued to the back for a third "wheel." It gets powered by 4 AAA batteries to supply 6v to the servos. Designed in OpenSCAD
Parts list:
SM-S4303 Servo (2x)
4 AAA battery holder
FS-GT2B RC Transmitter/receiver
Teensy 2.0
Voltage regulator with caps (5v for arduino)
Header pins
2in ID o-rings (2x)
M3X25mm cap screws (8x)
M3X20mm cap screws (2x)
M3X10mm cap screws (2x)
M3X6mm cap screws (2x)
M3 washers (8x)
M3 nuts (2x)
For more information about me and my other projects, check out my website at http://netzero.solarlogic.net/andrew/
