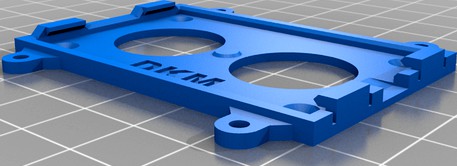

Matek F405/F722 Wing Mounting plate (Click on) by TurboCinqy
by Thingiverse
Last crawled date: 4 years, 3 months ago
Mount for F405 Wing or with simular dimensions. Check on Matek website
F722 was slightly different but not sure if it is always.
F722 was 2mm shorter an 0.5mm wider.
Changed the design and did add the files
Nov 12 2020
Nov 15 2020
F722 V1/V2 update
F405 V1/V2 update
Add 0.5mm on the clip side and shorten the clips 0.05mm
Don't force it to get in.
Grind the tabs down or scale the print if needed to fit properly.
F722 was slightly different but not sure if it is always.
F722 was 2mm shorter an 0.5mm wider.
Changed the design and did add the files
Nov 12 2020
Nov 15 2020
F722 V1/V2 update
F405 V1/V2 update
Add 0.5mm on the clip side and shorten the clips 0.05mm
Don't force it to get in.
Grind the tabs down or scale the print if needed to fit properly.
