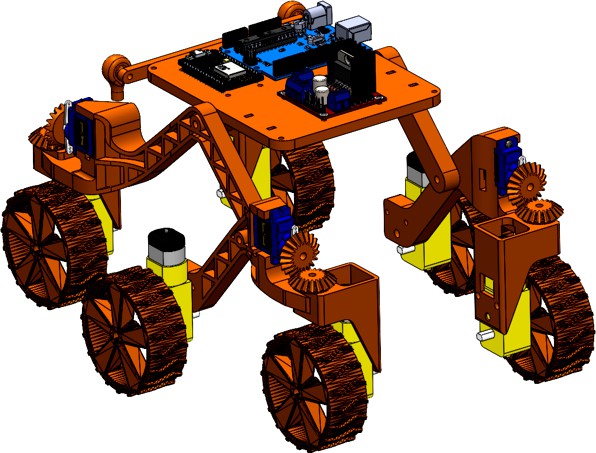

Mars Rover by TjomBucket
by Thingiverse
Last crawled date: 5 years, 3 months ago
This is a 3D printed Mars Rover. Unlike all of the other rovers that only have articulation in the suspension, this rover also has servos at each end to accommodate turning using methods other than differential wheel power. This addition does add a little bit of complexity, but is incredibly rewarding to build and play with.
My website contains the links to parts and how to download the program needed to run the rover: https://lucastjom.weebly.com/mars-rover.html
To complete this build you will need:
M4 X 30 Bolts
M3 X 30 Bolts
M4, M3 Nuts
8 AA battery holder (power Arduino and motors)
6 yellow geared motors with wheels
4 SG90, 9 gram servos (or generic 9 gram servos)
Arduino Uno
Arduino Uno Motor shield
Bluetooth Module
Alternatives:
L298N instead of the Arduino motor shield (might need to change the code a little)
you could use Arduino Nano with the L298N but there are no mounting locations for it
LIPo Battery (I used a 1300Mah 3 cell Lipo, I would not use anything with more cells than that). DISCLAIMER: the motor shield does not have a battery management system and LIPOS explode if you do not watch their battery voltage.
My website contains the links to parts and how to download the program needed to run the rover: https://lucastjom.weebly.com/mars-rover.html
To complete this build you will need:
M4 X 30 Bolts
M3 X 30 Bolts
M4, M3 Nuts
8 AA battery holder (power Arduino and motors)
6 yellow geared motors with wheels
4 SG90, 9 gram servos (or generic 9 gram servos)
Arduino Uno
Arduino Uno Motor shield
Bluetooth Module
Alternatives:
L298N instead of the Arduino motor shield (might need to change the code a little)
you could use Arduino Nano with the L298N but there are no mounting locations for it
LIPo Battery (I used a 1300Mah 3 cell Lipo, I would not use anything with more cells than that). DISCLAIMER: the motor shield does not have a battery management system and LIPOS explode if you do not watch their battery voltage.
