Magnetic Linear Encoder v1.1a by ril3y
by Thingiverse
Last crawled date: 4 years, 7 months ago

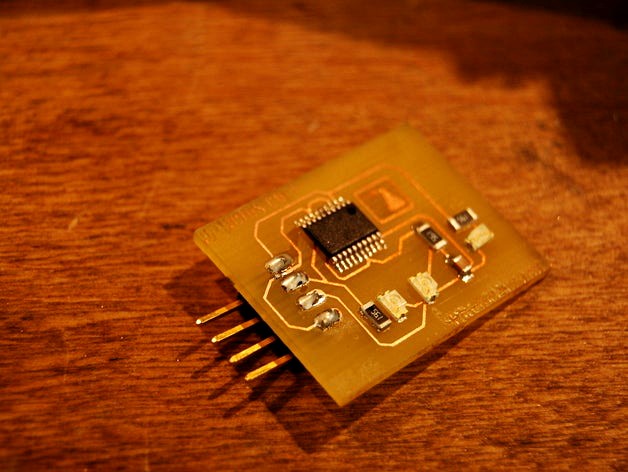

This is a single Sided approach to this board. But the version 1.1V thats in the makerbot SVN.
I tested this board by hooking up an 5v arduino + GND then ran a magnetic strip over the IC. The activity light started blinking! So it looks like everything is working. This is also my first board I have laid out that was a double sided board converted to a single. Some places are "tight" but its doable. I have ohm'ed out all my connections and everything is great.
Video of it in action here:http://www.flickr.com/photos/31697990@N00/4170462649/
Enjoy.
Ril3y
