Magnet Base for Hall Effect Limit Switch for CNC Machines by KikoLobo
by Thingiverse
Last crawled date: 5 years, 4 months ago
What is it?

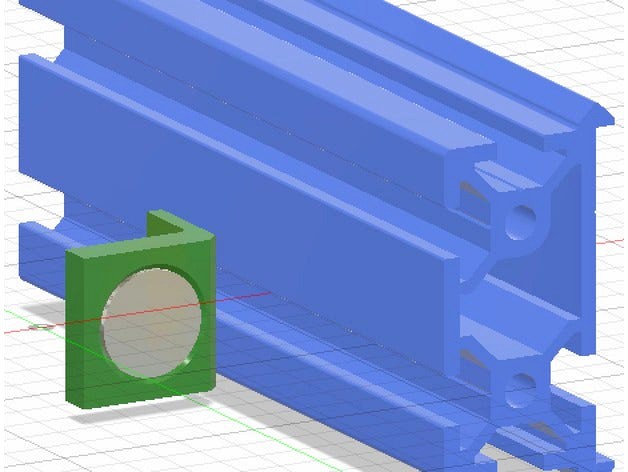

It is a base to attach the rare earth magnets to a CNC machines such as X-Carve or similar when upgrading your machine limit switches to Hall Effect switches.
It uses a screw to hold the magnet to the side extrusions such as the MakerSlides.
I used these limit switches: by Solder/Filament Solutions
UPDATE:
This version decreases the size of the magnet hole to make it go in more tight. And makes the screw hole larger to allow for M5 Screws.
