MadCase ND Filter
by Thingiverse
Last crawled date: 5 years, 9 months ago

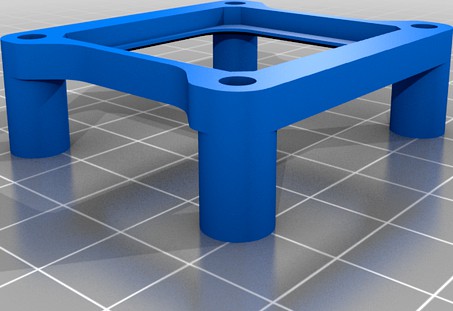

A custom front soft plate for the Madcase to fit TBS ND Filters.
Model ND8:
Fits TBS ND Filters 2, 4 and 8
Model ND16:
Fits TBS ND Filters 16 and 32 - (fits ND8 sizes with some extra space since ND8 and lower are thinner)
There are also a few tweaks to the original model. I added a beveled edge on the inside to rest nicely on the Sessions beveled edge. I added stoppers in the stud holes to stop the corners from flexing in. I also extended the legs to touch the bottom lock without a gap.
Blend file is included.
NOTE: You will see the carbon fibers round corners while in Superview or Wide mode. You may be able to file down the rounded edges on the front plate, but I haven't tried it yet. If you use ReelSteady Go, it may not matter since it will get cropped out.
