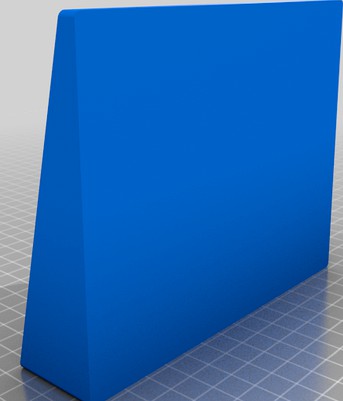

Machinist thin parallel block
by Thingiverse
Last crawled date: 5 years, 10 months ago
This is a parallel bar set for holding work pieces in drill presses or milling machines.
It is designed for a vice with a height of 50 mm.
We have six different heights: 20mm, 25mm, 30mm, 35mm, 40mm and 45mm for 140mm long.
I have inserted four parallels for each compartment, but it also depends on the width of your thickness, the total width of the compartments are 17mm each.
It is designed for a vice with a height of 50 mm.
We have six different heights: 20mm, 25mm, 30mm, 35mm, 40mm and 45mm for 140mm long.
I have inserted four parallels for each compartment, but it also depends on the width of your thickness, the total width of the compartments are 17mm each.
