M416 Trailer in 1:10 Scale by ossum
by Thingiverse
Last crawled date: 4 years, 11 months ago
Support
If you would like to support future free releases, please feel free to leave a tip, or support on patreon (especially if you sell prints of my designs). I really want to keep on giving these things away for free.
Making use of the affiliate links that I provide to purchase parts is also a way of supporting me that doesn't cost you anything. I don't recommend anything that I haven't personally used.
Failing all of that, I heartily appreciate a credit or link back to my facebook page when you post your prints on social media.
Introduction

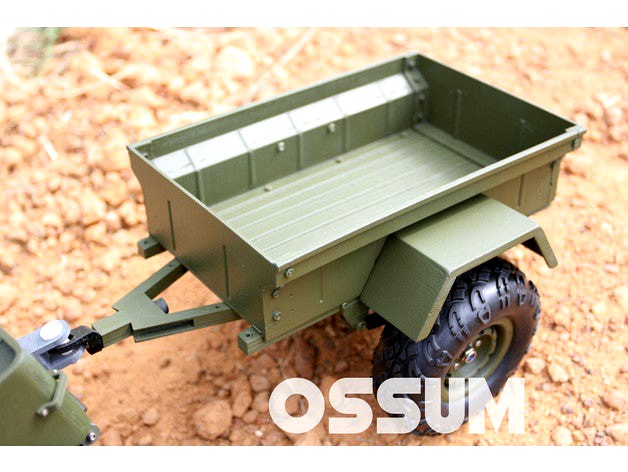

This is a an almost 100% 3D printed trailer for your 1:10 scale 4x4, based closely on the M416 trailer (it goes perfectly behind my jeep).
It includes working leaf-spring suspension, which I recommend printing in PETG
Video
https://youtu.be/FmGmvtKJsiY
Parts
Besides the printed parts you will need:
M2x5 (20)
M3x40 (1)
M2x10 (24)
M2x16 (6)
M3x12 (2)
M3 nuts (3)
M2 nuts (50)
M5 threaded rod (~160mm)
For each wheel you will need:
1.9 Tyre (these go well with the Jeep)
M2x10 Screws (5)
M2 nuts (5)
Printer
All of the thin parts are designed in multiples of 0.4 for easy thin-wall printing with a 0.4mm nozzle.
Updates
2017/02/18
Updated axle, should be easier to print with the flat face now.
2017/02/28
Added rear suspension bracket (takes an M3 screw)
