Lulzbot Taz 6 BTT SKR 1.4 turbo mod by wowModels
by Thingiverse
Last crawled date: 4 years, 11 months ago

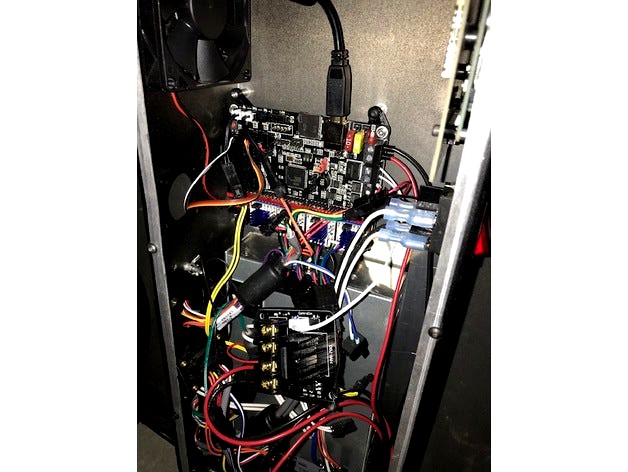

mount for skr 1.4 turbo board, using the standoffs for the rambo board. firmware here:
https://github.com/hazyavocado/Taz6-SKR14turbo
check out the branch "no bl touch" for manual leveling, or use the default branch if you want to use bltouch.
configured for hemera extruder, tmc2209 drivers, sensorless x/y homing, no cooling part fan, manual mesh bed leveling. set the bed mesh once and reuse it each time, saves lots of time not having to re-mesh before every print.
just plug in the stepper motors, min z switch, heaters and temp sensors. fan uses heater 1 connections. you can pull off the plastic around the pins on the rambo board so you don't need to rewire anything or cut any wires, this mod is fully reversible.
i recommend buying an external mosfet to control the heated bed.
