Whipped up a model of the recoil assembly in TinkerCAD. Should be compatible for the Luger P08 by Jace1969.

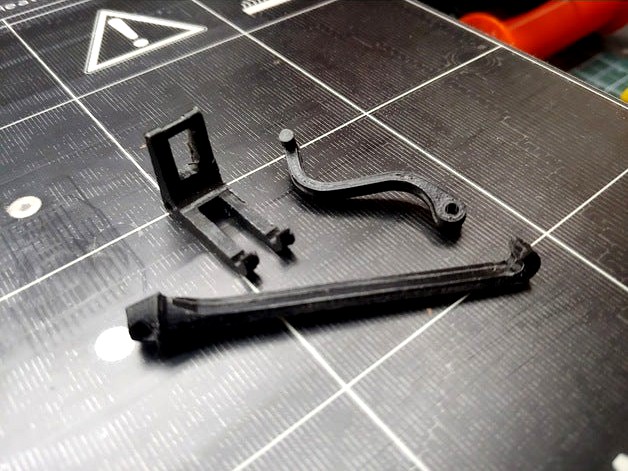

Includes the coupling link, coupling link lever, and mainspring guide - however, the mainspring can entirely be replaced by a rubberband and a BBQ stick. I also haven't used the mainspring guide with an actual spring so YMMV.
EDIT: Ordered some springs and tested out the mainspring guide. Completely functional, but it requires a little plate to prevent the spring from moving further within the body. I have included a mainspring blocker that can be inserted into the body. For the spring, I stretched a compressed 11/32"X 1-27/32" spring that I bought on Amazon.
