/!\ WARNINGS FOR STUPID/LITIGIOUS PEOPLE: Rubber band gun intended for recreational purposes. Do not use in public. Wear eye protection if necessary. If shooting someone with rubber band guns, make sure they are sufficiently protected. I am not liable for any damages resulting from improper use of this rubber band gun. /!\

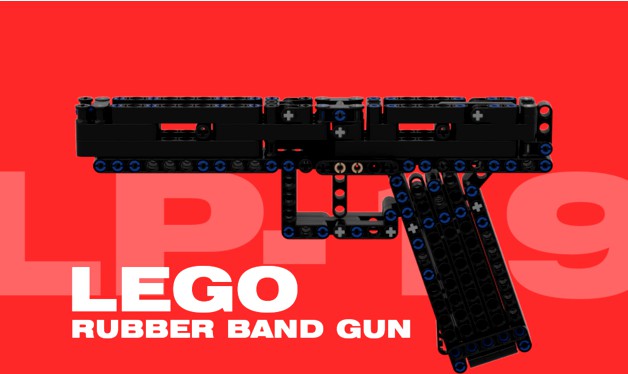

Measuring only 27 studs long by 4 studs wide, the LP-19 (Light Pistol 2019) is a compact, studless redux of Ironkilix's semi-automatic Glock replica. The simple slide mechanism, held together by two easily-removable pins with bushings, in combination with a magazine well and release system designed by infectedbear95, allows for a compact, realistically proportioned package.
To make your ammo last longer, it is highly recommended that you soften the edges of the 5M half-beam or lever that serves as the repeater cam. Not doing so may cause loaded rubber bands to break on the sharp edges, jamming the weapon.
STATS
Fire mode: semi-automatic
Action: Repeater cam regulated by escapement
Capacity: 2-4 rounds (dependent on rubber band thickness and strength)
Ammo: Size 16 rubber bands
FEATURES
Shoots up to ~5 metres
Simulated blowback action
Simple, easy-to-service mechanism
Realistic dimensions and shape
Faux magazine with bullet
Functional magazine release
Functional slide lock
Poseable mock hammer
TIPS
The two 3/4 pins used in the slide lock may be too loose and may be replaced with studded half-pins.
To reload:
Push the repeater cam down at the rear so it sticks upward.
Loop a loose rubber band around the cam and place your thumb on the end.
Reload back to front, holding the repeater cam in place as you pull the rubber band forward.
Hook the rubber band onto the blue axle at the front.
Push the repeater cam down and backwards, which will extend the slide backwards by a small amount.
The rubber band will be loaded when the cam lays flush with the top of the gun and the slide moves forward.
See the video above for more information.
