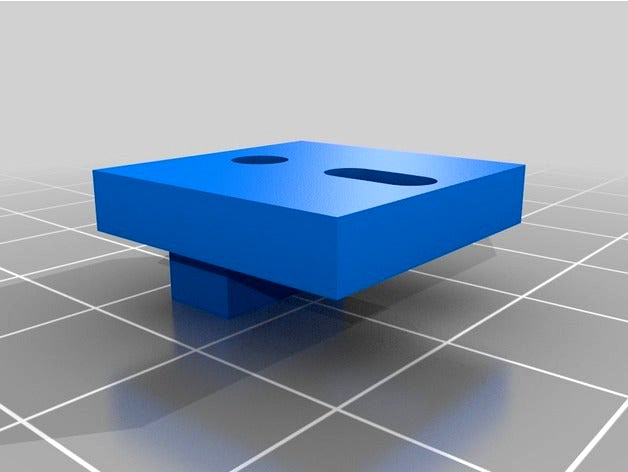

Lorei Bed Leveling Bracket by PhoenixZip
by Thingiverse
Last crawled date: 4 years, 7 months ago
Rev 3
Issues with previous model - Sensor and fan shroud would hit bracket due to protruding to far vertically.
Reduced height
Heated / Glass Bed Bracket for Lorei Uno / Duo
Bracket may need to be cleaned up for clean sliding fit.
A bolt runs through the top and bottom, spring loaded (Reccomend from a pen)
A 6-32 tap used to hold a set screw for top of the bracket to push bed down to lower (Allows uses of diffrent widths of glass)
Slotted Hole to make fastening of mount to Y-Axis Tray easier / adj.
