Linear rail alignment bracket

Last crawled date: 5 years, 10 months ago

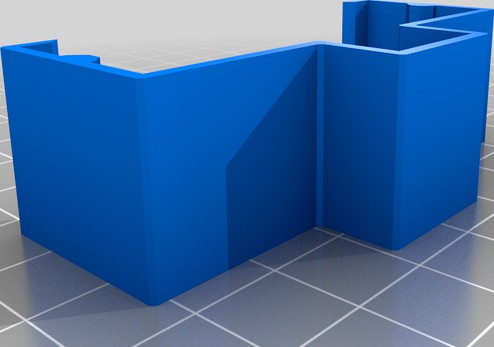

This is a bracket used to centre a linear rail (15x10mm) on some aluminium extrusion (60x20mm). I'd recommend you print 3 of these and place them at the top, bottom, and middle of the rail, they should hold it quire firmly, then you can just tighten the screws and the rail should be centred.
