Description

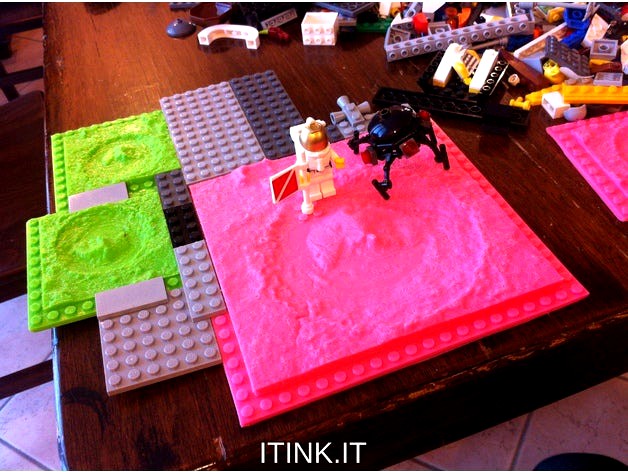

It's a set of LEGO compatible baseplates, with two plate dimensions: 10x10 pins (80x80 mm) and 20x20 pins (160x160 mm)
They are designed to fit with regular LEGO bricks in order to create a martian terrain scenery.
Designing
I have downloaded the STL scan of the Gale Crater from
https://nasa3d.arc.nasa.gov/detail/gale-crater
and created all around with Blender, adding the base and the LEGO pins, the 20x20 pins version has 4 auxiliary pins for put a a flag on the crater.
The decimate modifier is used in order to reduce the numbers of the polygons from the NASA gale crater scan.
Sources in Blender format are available for download.
Printing advice
I have printed the models with:
0.4 mm nozzle
0.2 mm layer height
30% infill
6 perimeters (2.4 wall thickness)
I advice to use a 30% infill setting for better finishing of the crater surface.
Weight of the finished objects with 30% infill: 20 g (10x10) and 80 g (20x20).
License
Creative Commons Attribution 4.0 International (CC BY 4.0)
NASA credits
Stl scan of the gale crater downloaded from https://nasa3d.arc.nasa.gov/detail/gale-crater
Special thanks
To Gianluca Faletti (aka Kino) for Blender tips and tricks
Resources
Thing on thingiverse: http://www.thingiverse.com/thing:2065782
GitHub: https://github.com/alessiocavalieri/lego_gale_crater
Wiki: http://itink.it/wiki/doku.php?id=en:tinkering:3dprinting:myowncreatedobjects:legogalecrater
Google plus photo album: https://goo.gl/photos/Mdvz5QRDDY53t3bM7
