LED lighting
by Thingiverse
Last crawled date: 6 years, 5 months ago

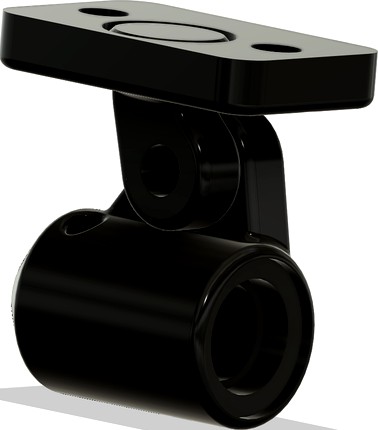

Fast easy and adjustable LED lighting for 3D printers (or other stuff).
It's using some cheap COB leds that gets sold prebuild, with lenses.
Just some quick and easy disassembely needed of the LED kits from AliExpress and then just put it together with the printed parts.
The short and long mounts are 3mm shorter/longer than each other.
Parts needed.
1x - 18mm LED "Daytime Running Lights" https://www.aliexpress.com/item/32833231023.html?spm=a2g0o.productlist.0.0.57cd31ebalWjOR&algo_pvid=585dcf5b-9625-418e-9144-6c3c1e2cc7f3&algo_expid=585dcf5b-9625-418e-9144-6c3c1e2cc7f3-33&btsid=9aa70e52-e53c-41e9-982a-040b48c43d8c&ws_ab_test=searchweb0_0,searchweb201602_4,searchweb201603_52
1x - M4 x 10mm bolt
2x - M4 x 8mm bolts
2x - M4 T-nuts
Supports are only needed on the "LED-housing", and it's made to be printed as shown in the screenshot.
