Laundry Shelf bracket system by Ikariya
by Thingiverse
Last crawled date: 4 years, 4 months ago
Problem: The area above the washing machine is useless and there were no commercial shelves available in the exact dimensions needed to fit over our machine.

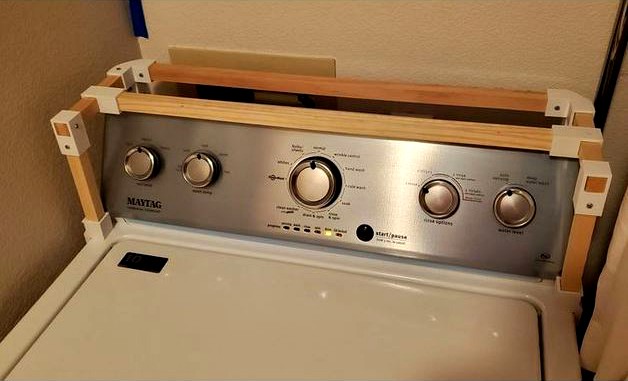

Solution: A series of simple parts I designed to work with 3/4 in wooden dowels. They can be configured in any way possible, but I needed them to reach over this washing machine to use as a shelf.
Parts are:
3way - A set of three perpendicular ports.
Fig8 - Perpendicular ports for a joint.
Foot - One port with an arm to wrap around the washer top.
Foot 2 - Same as Foot but it has a lip on top just in case the wood wasn't stable enough and the bottom needed a ribbon tied around for stability.
Grip - A part that just grabs 3 sides of a wooden dowel.
Corner - Corner stability with 1/8in width for the shelf on top.
Solution: A series of simple parts I designed to work with 3/4 in wooden dowels. They can be configured in any way possible, but I needed them to reach over this washing machine to use as a shelf.
Parts are:
3way - A set of three perpendicular ports.
Fig8 - Perpendicular ports for a joint.
Foot - One port with an arm to wrap around the washer top.
Foot 2 - Same as Foot but it has a lip on top just in case the wood wasn't stable enough and the bottom needed a ribbon tied around for stability.
Grip - A part that just grabs 3 sides of a wooden dowel.
Corner - Corner stability with 1/8in width for the shelf on top.
