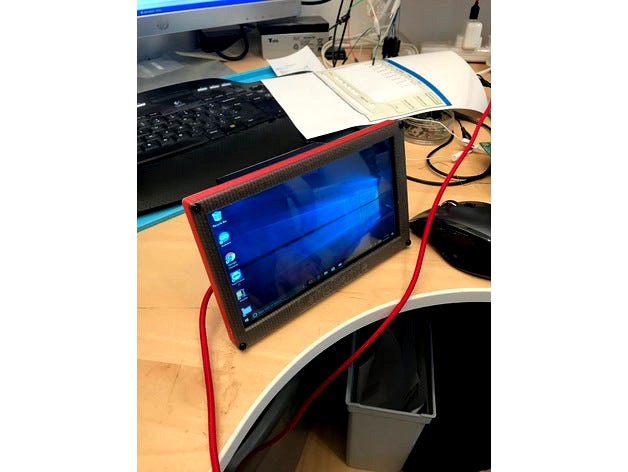

Designed this display case to house the lattepanda 7inch display and touchscreen with mounting holes to fit the DesignSpark lattepanda case on the back.
Also made it super easy and quick to print, no supports needed.
Youll need 4 x M3 bolt to screw into the plastic, no need for self tappers. youll also need 3 x M3 bolts to hold the rear case on with some spacers to allow for airflow from the fan.
Holes for the back are 70mm wide, 65mm deep.
DesignSpark Case link:https://uk.rs-online.com/web/p/products/1442598/?grossPrice=Y&cm_mmc=UK-PLA-DS3A-_-google-_-PLA_UK_EN_Enclosures_And_Storage_And_Material_Handling-_-Enclosures%7CDevelopment_Board_Enclosures-_-PRODUCT+GROUP&matchtype=&gclid=Cj0KCQiAv_HSBRCkARIsAGaSsrALZoBzEA1FLvdRlsvmUz5HGkPwO7-3yqwlp4SwNcTDnNBpFMXUHxsaAlHGEALw_wcB&gclsrc=aw.ds
