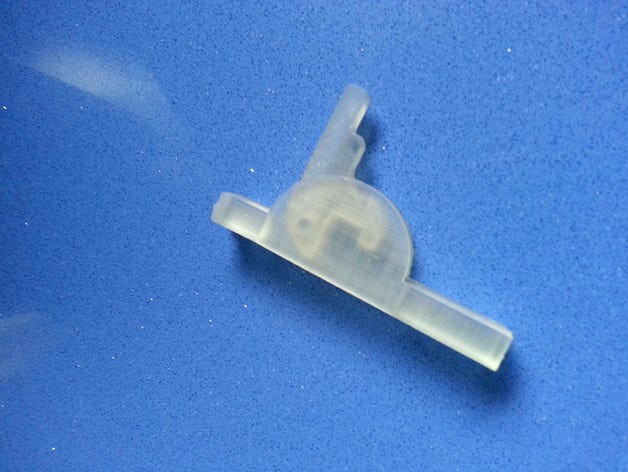

This is a prototype (proof of concept) of a three part latch.
"Crazy Glue" the top and bottom with the latch in between.
Use a pin to keep the latch closed (added to STL files).
Drill mounting holes on the base wherever you want them.
You can play around with the shape of the latch to fit your needs.
Good luck!
3D model: trueSpace
Printer: Form1+, Resin Version 2
Time from art to part: 30 min
