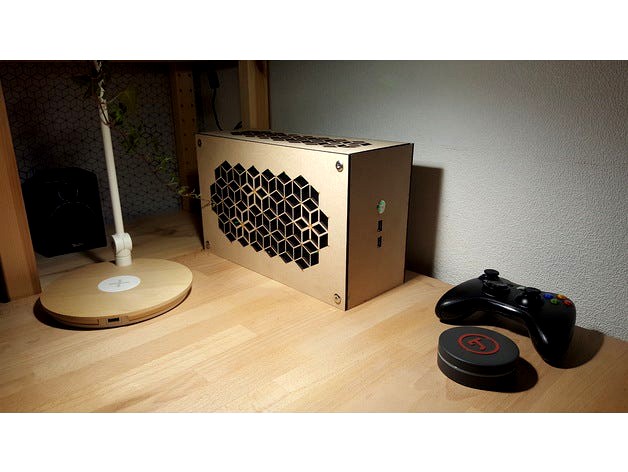

PC case for a mini - ITX system
Laser cut specifications : 4 mm mdf or another matarial that is 4 mm thick
The outer dimensions are LxBxH 340 x 135 x 210mm
The pictures should explain how to assemble the case.
The following components are also needed:
8 x M6 barrel nut with hex socket
4 x M6 120mm Dual head screw rods
25 cm riser PCI-E riser card.
On/Off switch can be any Momentary button but you might have adjust the cut-out.
ATX power on reset switch cable (with LED light optional)
USB 3.0 Female cable to 20 pin motherboard header
Rubbers to mount the 3.5 "drive
Panel mounted power inlet, IEC320 C14 Male 3Pin
C13 IEC cable with 90 degree angle
