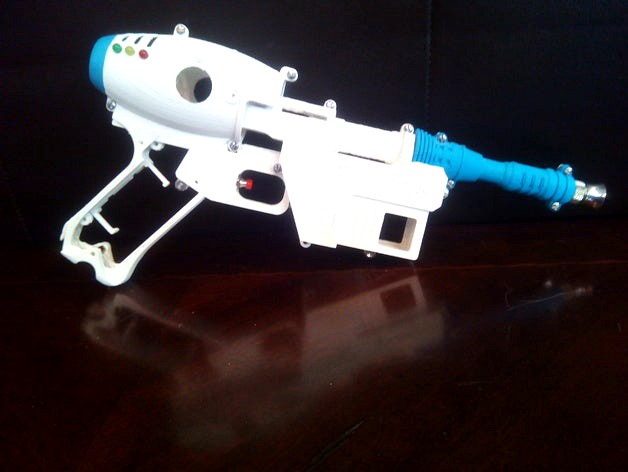

Laser Pistol - 08 (LP-08) by Nevaar
by Thingiverse
Last crawled date: 4 years, 4 months ago
Note: Unless you are a certified masochist, do not attempt to print this just yet! This design is unproven, untested, and unknown results are sure to follow! You have been warned! Enjoy!!
I loved some components of the Adafruit blaster, but have been a fan of the German p08 Luger for a long time. Combined with another blaster design I liked, I decided to try to combine them all into a functional laser pistol.
This design uses a 12mm laser module and associated heat sink., for example mine uses a 1.8W I picked up from amazon on the cheap :)
1.8 Laser Module (yeah, they have higher power :) ):http://www.amazon.com/Copper-445nm-Module-X-Drive-405-G-2/dp/B00UEBX08O/ref=sr_1_1?ie=UTF8&qid=1447624450&sr=8-1&keywords=1.8W+laser+module
Protective Eyewear (if you play with lasers and don't have these, then you deserve a Darwin Award!! Seriously!! No F*ING JOKE!) !!!!http://www.amazon.com/gp/product/B009T6RN0G?psc=1&redirect=true&ref_=oh_aui_detailpage_o03_s00
Heatsink:http://www.amazon.com/Professional-Aluminum-Cooling-Heatsink-heatsink3/dp/B00TUVBOCI/ref=pd_rhf_dp_p_img_6?ie=UTF8&refRID=18Y4HM4MY1C6M3X47YGJ
Batteries:http://www.amazon.com/gp/product/B01488KC3O?psc=1&redirect=true&ref_=oh_aui_detailpage_o00_s00
You'll need these if you don't have em (min 25, more is always better):
4-40 x 3/8" SS Machine Screws
4-40 hex nuts
No.4 lock washers (optional)
files, sandpaper, Dremel, Sugru, you know... the basics.
plus any stray odds annd ends you want to glue on :) For example, the flared barrel tip is made of spare e-cig parts - heh.
This 'thing' is FAR from perfect at this time! Some work remains to be done here, for sure.
Until I modify them and get them reposted here, most missing pieces can be found on the Adafruit blaster page. Likewise, the Luger grips can be pulled from the Luger P-08 source page, until I can rework them for the LP-08 Laser Pistol.
Also, there are bound to be SERIOUS balance issues! Sheesh, its an early prototype whattaya want?
