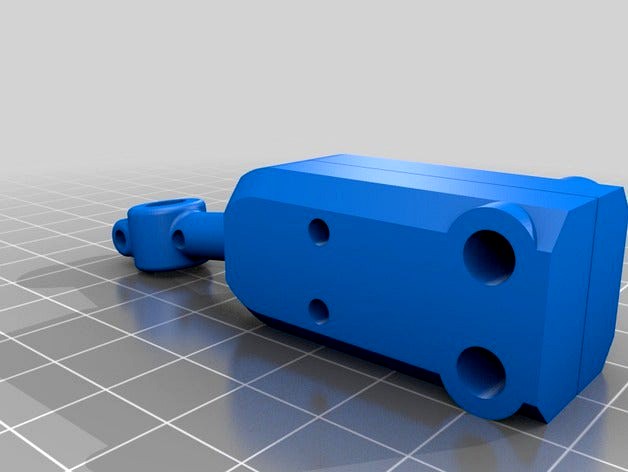

Laser Diode Holder Ball and Socket
This is a simple 2 part design, made from 2 lots of 2 different parts.
Print 2 of each.
INCLUDED: ProE Native Files
This has been designed to be fitted together around a laser diode and then held in place with cut off 3mm filament.
I've done a little platter for you. You'll get the idea.
I use this instead of the fan on my RepRap. At the end of the build the laser diode receives the 5V it needs to project the laser dot onto somewher I can see it. This tells me the build is finished and I can go and get the job off the printer.
Print with ABS. Hopefully 3mm. Glue with Pipe Weld or Acetone.
Enjoy.
