Landing Gear Extension for Warthog Throttle
by Thingiverse
Last crawled date: 4 years, 4 months ago

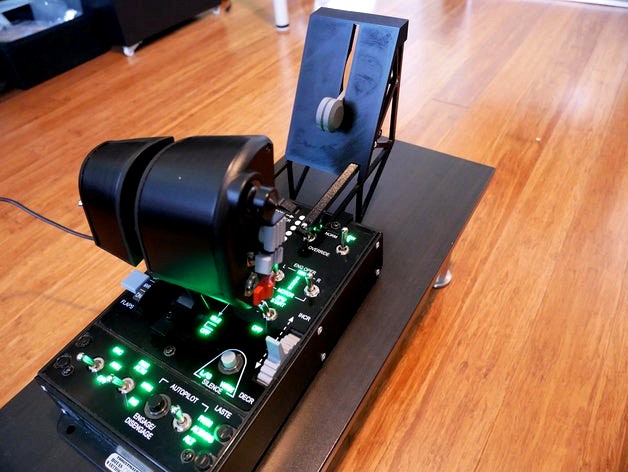

This is an extension for the Thrustmaster Warthog throttle unit. It transfers movement of the [ENG L][NORM/OVERRIDE] toggle switch which is usually in accessible with throttles forward to be used as a landing gear lever switch.
Video of use: https://streamable.com/7xwqm
I assembled using 5 x screws of size 6-32 x 3/4" with nuts, but all holes are sized as 3.6mm diameter, so M3 screws would also work well, or you could print some rods to fit.
The left and right sides of the frame attach to the Warthog base using existing screws on the top plate.
All STLs have a flat side for printing, no supports needed.
For assembly:Note design is intended for all screw heads to be on right hand side.
Screw together bell crank (90 degree, light grey) link to RH Frame as seen in sketch
Screw toggle switch slider (black) to bell crank
Screw landing gear lever without wheel to RH frame
Insert dogbone link (red) into gap in landing gear lever without wheel, then screw together
Screw other end of dogbone link to bell crank (light grey)
Attach LH and RH frames to warthog base using existing Warthog screws on top plate
Snap on cover plate over LH and RH frames
Attach wheel to landing gear lever
I've also attached the Fusion360 file (.f3d) if you'd like to edit it.
Video of use: https://streamable.com/7xwqm
I assembled using 5 x screws of size 6-32 x 3/4" with nuts, but all holes are sized as 3.6mm diameter, so M3 screws would also work well, or you could print some rods to fit.
The left and right sides of the frame attach to the Warthog base using existing screws on the top plate.
All STLs have a flat side for printing, no supports needed.
For assembly:Note design is intended for all screw heads to be on right hand side.
Screw together bell crank (90 degree, light grey) link to RH Frame as seen in sketch
Screw toggle switch slider (black) to bell crank
Screw landing gear lever without wheel to RH frame
Insert dogbone link (red) into gap in landing gear lever without wheel, then screw together
Screw other end of dogbone link to bell crank (light grey)
Attach LH and RH frames to warthog base using existing Warthog screws on top plate
Snap on cover plate over LH and RH frames
Attach wheel to landing gear lever
I've also attached the Fusion360 file (.f3d) if you'd like to edit it.
