KY-040 rotary encoder mounting block

Last crawled date: 5 years, 10 months ago

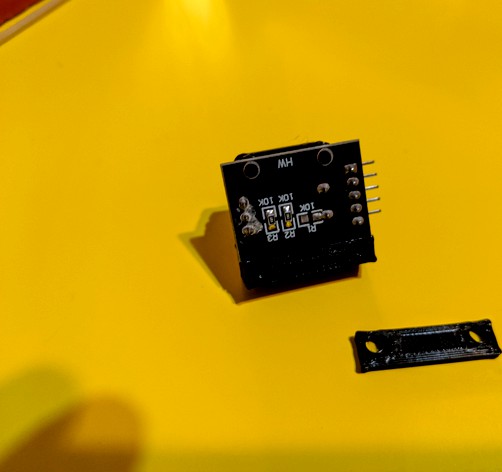

A simple mounting block for a KY-040 rotary encoder. This is basically useless by itself; it is meant to be attached to the inside of a device case/housing where a rotary encoder is needed. Just snug this up to the inside of your case model, and pop a 3.6mm radius hole in the case model with your favorite modelling tool. There is an sample image of some of these encoder blocks mounted to a case model alongside the files for this thing.
The clip supports the other side of the rotary encoder. You may not need it.
Needs four screws (two if not using the clip).
