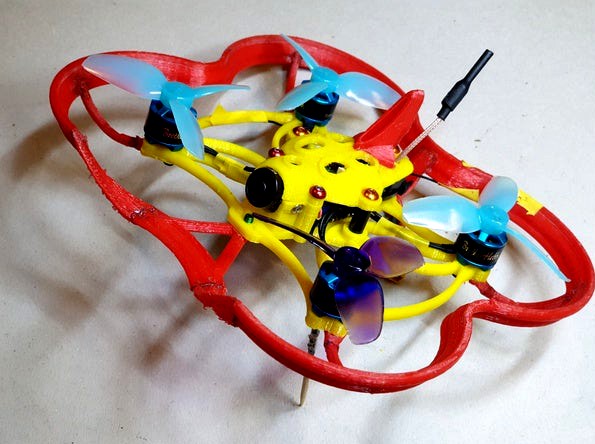

Ktulhu, 2.5" micro kwad

Last crawled date: 6 years, 2 months ago

Ktulhu, named after design of the frame. the frame itself is shaped this way to withstand bumps as much as possible
important requirements regarding setup:
16x16 stack
M2 motor mount, with 9mm distance between the holes
frame is made for 2.5 inch props
you will need 3 15mm long M3 standoffs, 9 6-8mm M3 screws, 6mm M2 screws for motors and pair of long screws for the stack
my setup:
iFlight Succex V1 16x16 ESC+MCU
Brotherhobby R3 1106 7.1kV motors
2.5" HQProp
TBS Unify Pro Nano VTX
R-XSR receiver
Caddx EOS2 camera
