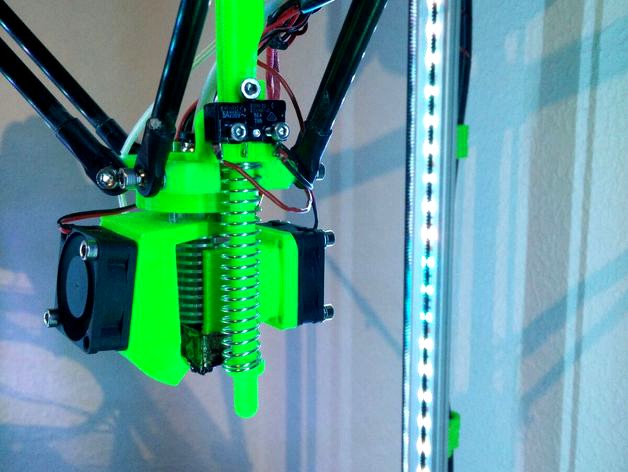

Kossel Auto Bed level Z Probe by ducki
by Thingiverse
Last crawled date: 4 years, 11 months ago
I designed a simple Z probe for my Kossel Printer. It fits onto the standart effector and is used with a e3d v6 hotend.
The Spring I used is 50mm long but you can just modify the .123dx file to use diferent lengths. Be careful with the right screw of the switch. Just Screw a M3x12 into the pin to trigger the switch.
For now you can only retrace the Probe by pushing it in but you have to deploy it manual until I come up with another solution.
