I created my Under sink washer for mounting Kohler faucet in single hole when the metal bracket that shipped with the faucet (Kohler Worth single-handle bathroom faucet) didn't fit the area we had to mount the faucet. It was born of necessity and was a quick print that worked well.

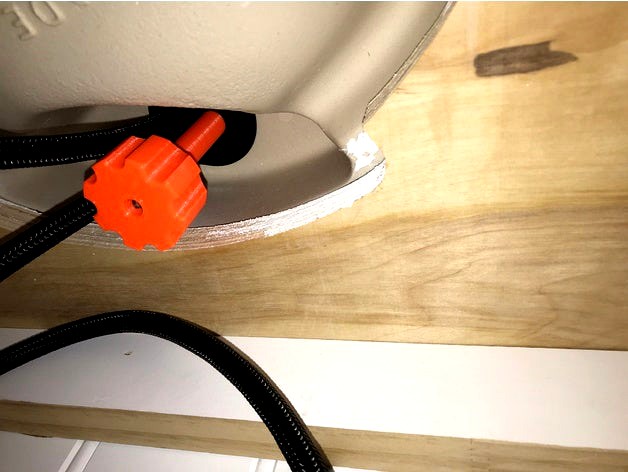

When I went to install it, however, I couldn't find the large mounting nut that came with the faucet that would hold the faucet in place. I looked, and I looked, but I just couldn't find it. So, to the 3D printer we went, yet again. A quick sketch, some dimensions, rough up the shape, and we're good to go. I measured the thread of the long rod that holds the faucet in place, it's a standard 1/4"x20tpi, which is a standard thread in Fusion360.
Yes, this is listed as a remix but only because these are directly related parts.
Printed it up using 0.200mm layer height because I was impatient. Usually would do threaded parts with a 0.100mm layer height, but it worked out well as the thread came out a bit tighter and so was like threading on a nyloc nut. Took a whole bunch of turning because the threaded rod is so long, but once it tightened up, it was nice and solid.
When I went to install it, however, I couldn't find the large mounting nut that came with the faucet that would hold the faucet in place. I looked, and I looked, but I just couldn't find it. So, to the 3D printer we went, yet again. A quick sketch, some dimensions, rough up the shape, and we're good to go. I measured the thread of the long rod that holds the faucet in place, it's a standard 1/4"x20tpi, which is a standard thread in Fusion360.
Yes, this is listed as a remix but only because these are directly related parts.
Printed it up using 0.200mm layer height because I was impatient. Usually would do threaded parts with a 0.100mm layer height, but it worked out well as the thread came out a bit tighter and so was like threading on a nyloc nut. Took a whole bunch of turning because the threaded rod is so long, but once it tightened up, it was nice and solid.
