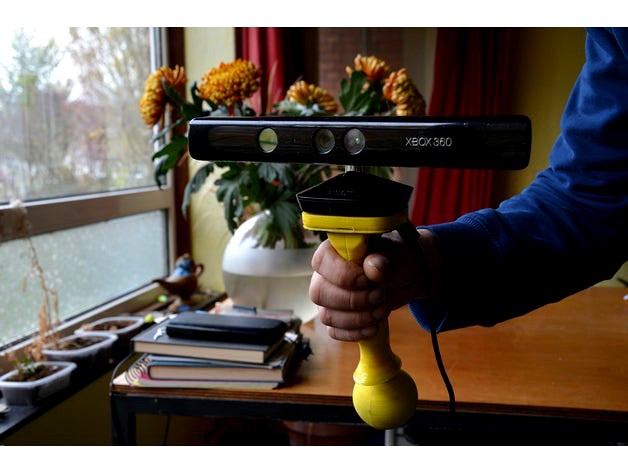

Kinect Holder and Handgrip by CatweazleMagic
by Thingiverse
Last crawled date: 4 years, 4 months ago
This thingi is a refinement of “The Hammerhead - Handheld Kinect Grip” By Toni Buser https://www.thingiverse.com/thing:18125
I saw a few tiny details which I thought could be done a little better. So here it is.
But the grip of Tony Buser is the mother of all.
I wrote an instructables on how to assemble the whole thing https://www.instructables.com/id/How-to-Assemble-the-Kinect-Grip-of-CatweazleMagic/
I think this might be usefull.
What you need to succeed:
4x Socket head Cap Screw (Din 912) M3x12 or longer
2x Socket head Cap Screw (Din 912) M3x25
6x Washer (Din 125A) M3
6x Hexagon Nuts (Din934) M3
4x Springs Du Ø4.6, D Ø0.6, L25, N10
1x 1/4" Tripod Screw (for sale on some Chinese web stores for a few dimes)
1x Knurled Nut (Din466) M5
1x Plain Rubber Washer SAE AS 568A NBR 219 (8.5 x 3 x 19)
1x piece of plain rubber I mm thick (old tyre tube or something like that)
¼ liter fine sand. Any type will do (although calculations have been done with north sea dune sand)
Pair of Scissors
Pair of side cutting pliers
Set of Allen keys
Piece of sand paper, any grade will do
Two component PU adhesive
Cheap Crimping pliers (see picture)(be sure to check the use before buying anything)
File (just to take away a few brambles)
Sliding Calliper
Countersink Bore
Ø 5 mm Bore
Little sharp knife. Anything will do as long as you are comfortable in handling it and don’t end up cutting your own fingers off.
I do hope you will enjoy this thingi.
Regards CatweazleMagic
