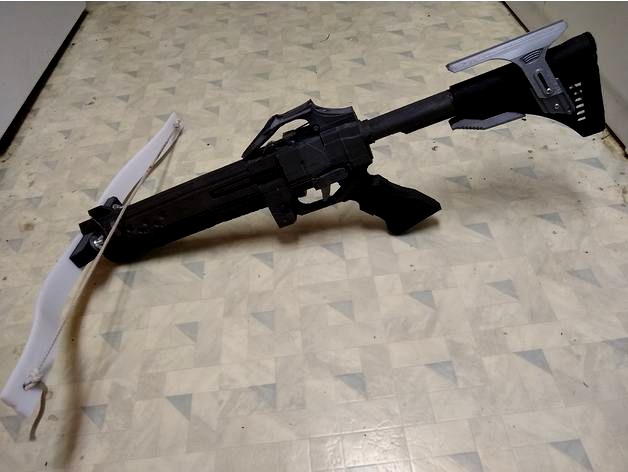

KarrMcDebt's Full Size Fully Printable Tactical Crossbow Ver. 1 by KarrMcDebt
by Thingiverse
Last crawled date: 4 years, 8 months ago
This is a "first working version" prototype. I have several plans to refine it.
A remix of ;
Cerberus89 Crossbow frame(https://www.thingiverse.com/thing:3902030),
Mossberg 500A Bullpup stock conversion kit slide grip (https://www.thingiverse.com/thing:789051),
Buttstock+AR15+airgun(https://www.thingiverse.com/thing:4323363),
and Crossbow, Western style(https://www.thingiverse.com/thing:1378783).
The scale of your crossbow is dependant on the size of your build plate, at this scale you will need a 300mmX300mm build plate to print the bow limbs. If you don't, scale the limbs to fit your build plate, then use that scale for the rest of the crossbow parts.
Print two "Bow Limbs" but print one at a time. Remove the first one from the build plate and re-run the same g-code for the second one, that way they are identical.
Print them solid in PETG. It doesn't matter if that is 50 shells, 9999top/bottom layers, or 99% infill.
Print the trigger mechanism A & B solid as well.
Assemble with the best epoxy you can find.
