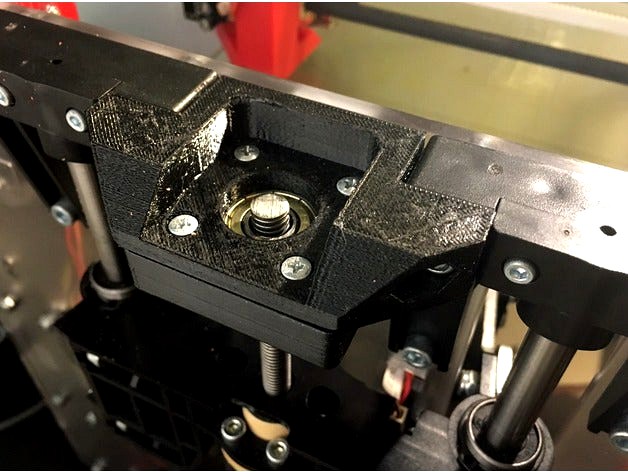

K8400 VERTEX Z-axis Stabilizer (Rev. 2) by Bo_Ris
by Thingiverse
Last crawled date: 4 years, 7 months ago
This is the second revision of my K8400 VERTEX Z-axis Stabilizer published here.
I designed it as part of my Vertex Evolution project where the top panel of Vertex will be removed to gain more space.
Use plain 608 bearing, four M3x12mm screws and four self-locking M3 nuts to connect pieces together. Replace two M5 screws with M5x30mm screws.
Update 19-Oct-2017: Uploaded cover piece.
